Detalles del Producto

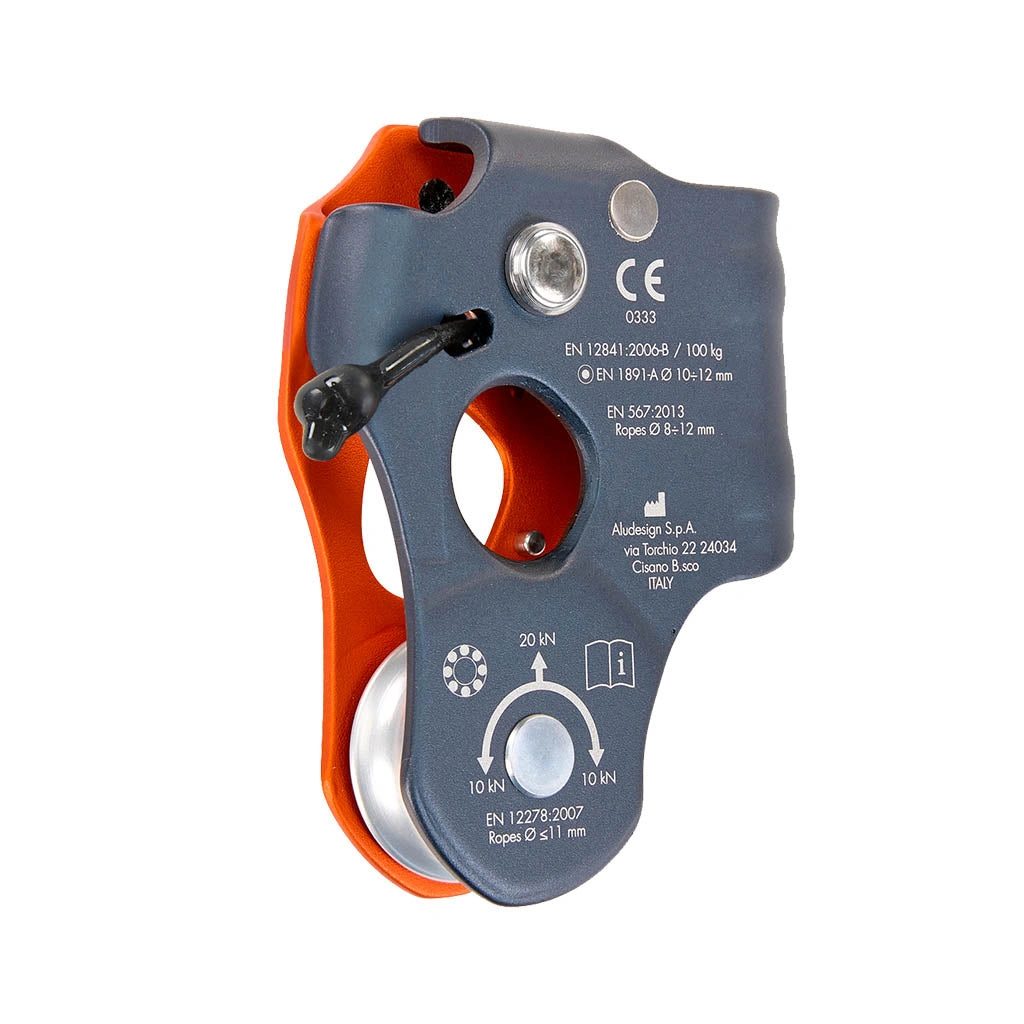

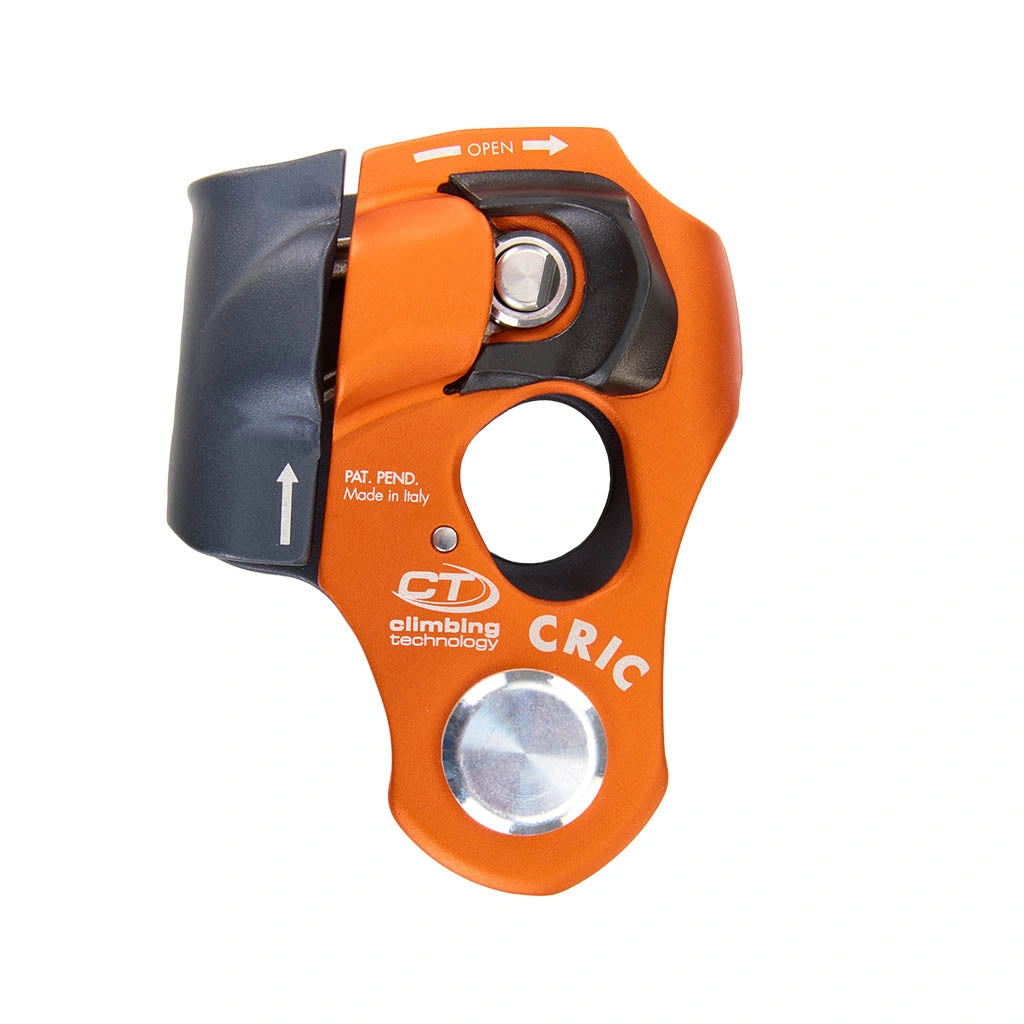

A multifunctional rope clamp with integrated pulley for mountaineering, rope access work and rescue. Robust, practical and intuitive, it has four different modes of operation: ascender, pulley, rope clamp/pulley or progress-capture hauling pulley.

Features

• Its versatility, compact size and ease of use allow reducing to the minimum time, material and space needed in rope manoeuvres;

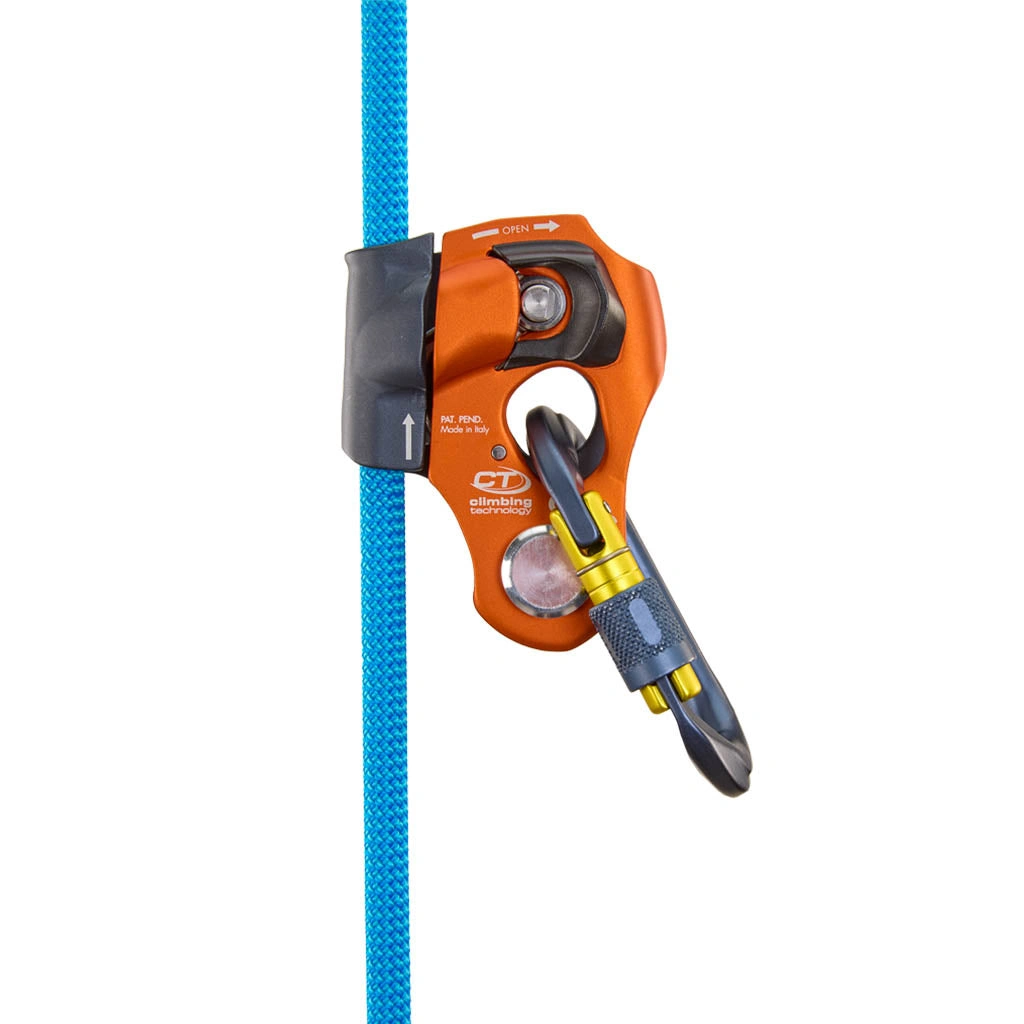

• It allows ascending the rope in accordance with EN 567 / EN 12841-B standards (ascender mode);

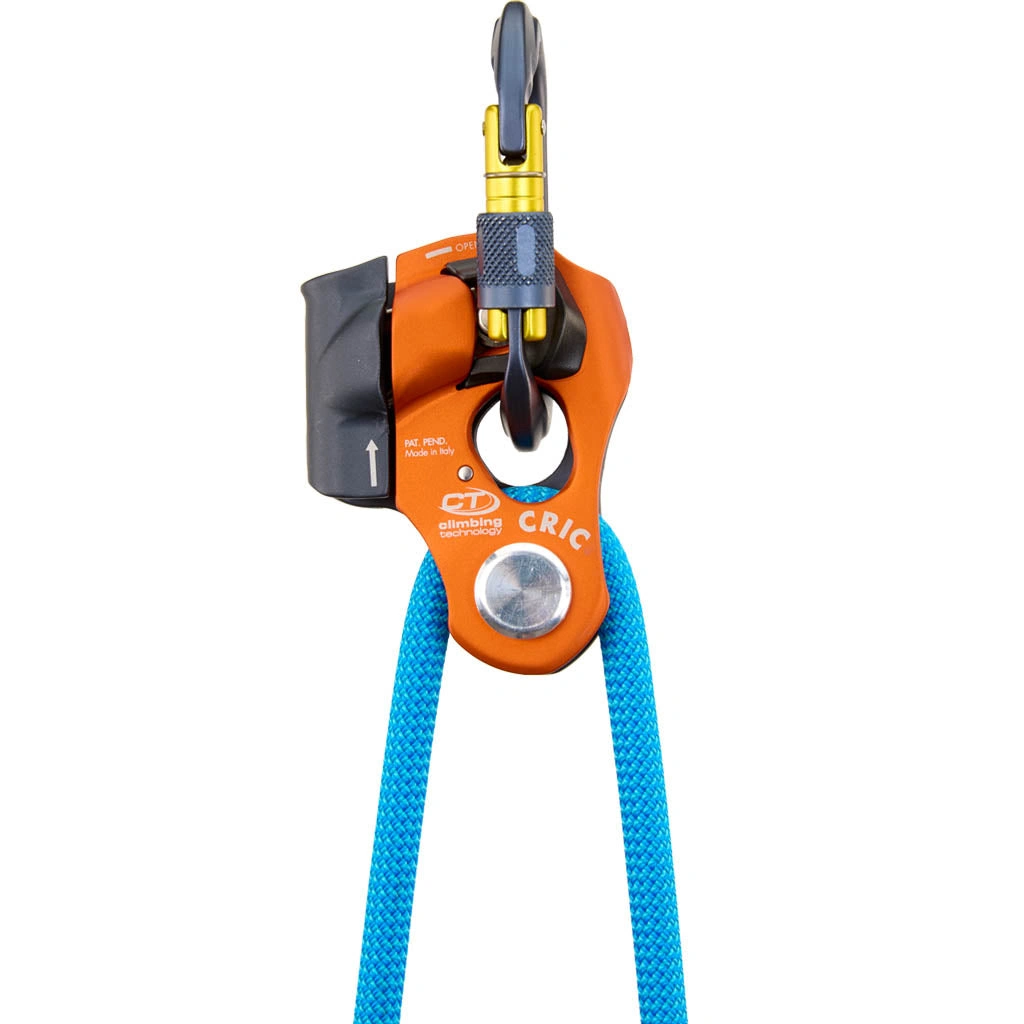

• It can be used as a simple pulley for lifting or transferring a load in accordance with the EN 12278 standard (pulley mode);

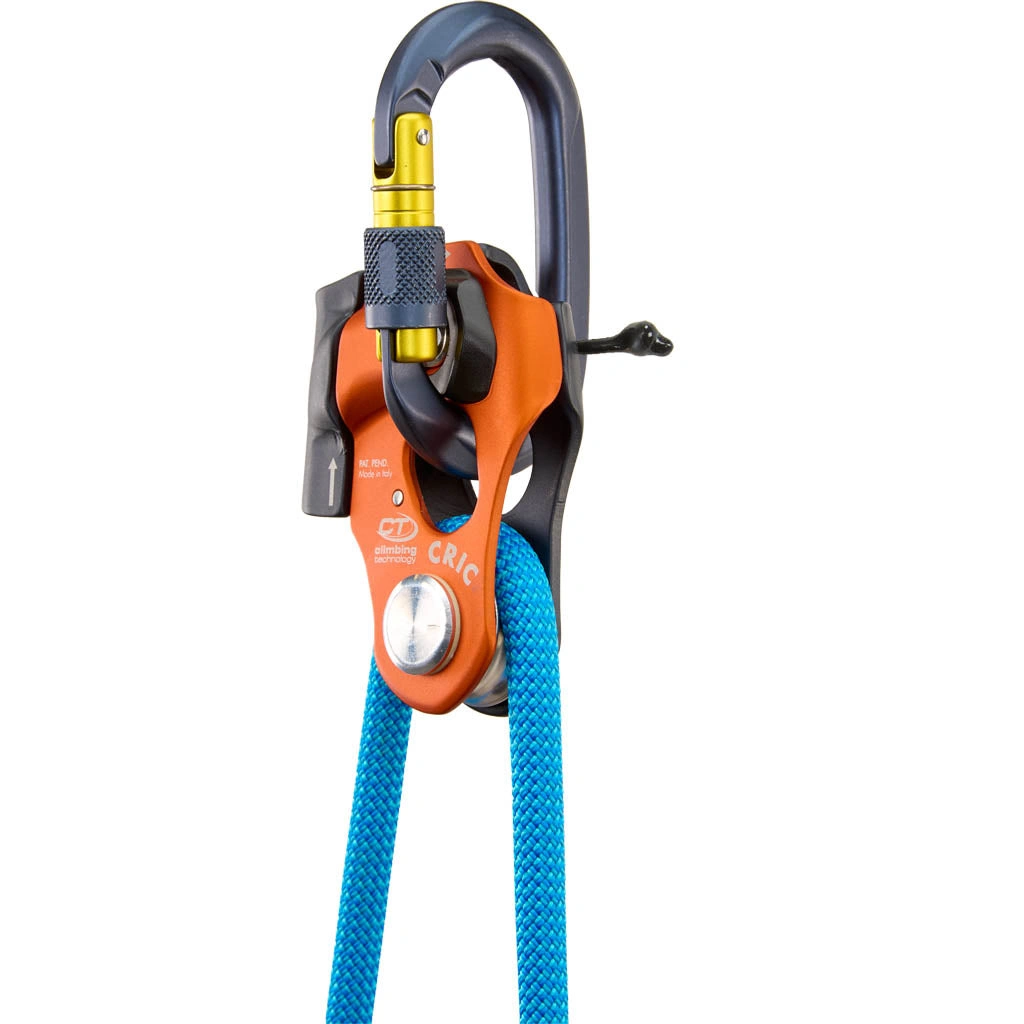

• The integrated ball-bearing sheave can be used as a simple redirect to make it easier to ascend a rope or to lift a person without the aid of additional connectors (rope clamp/pulley mode);

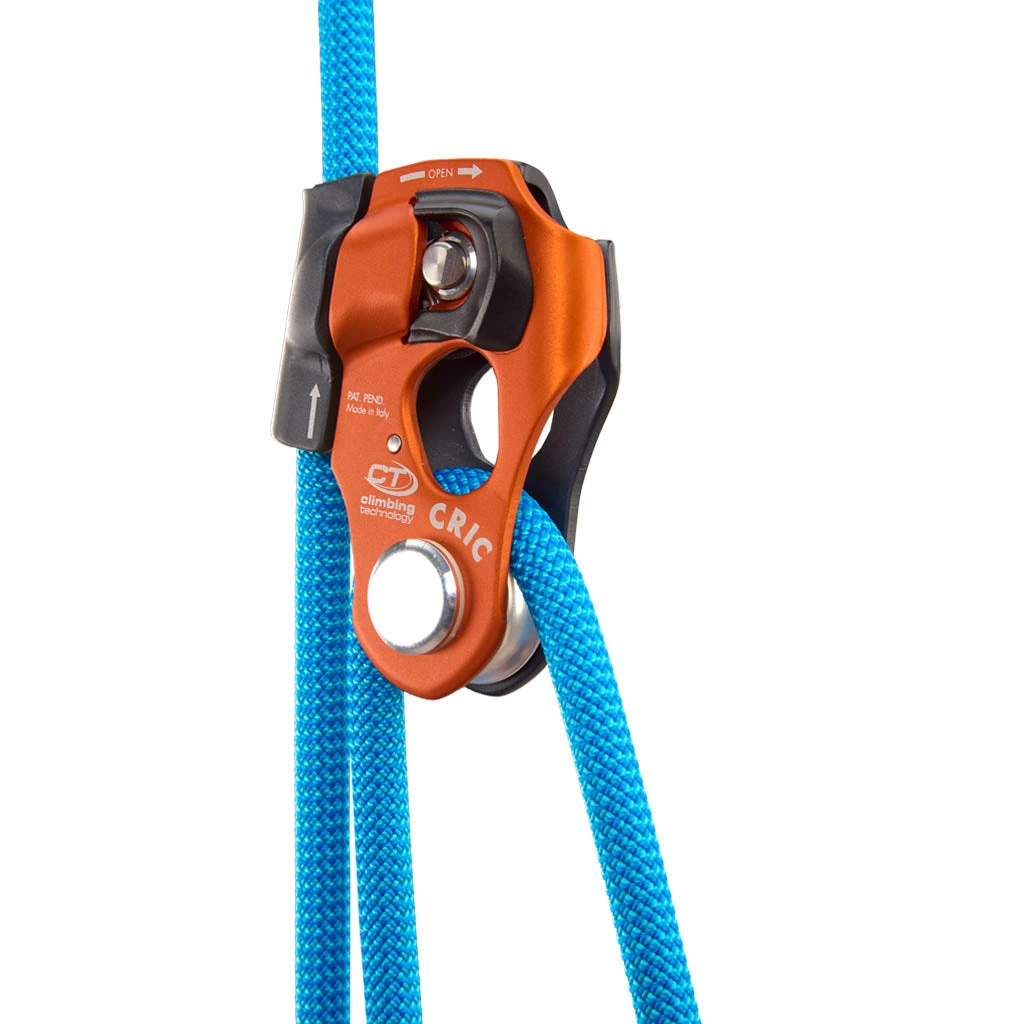

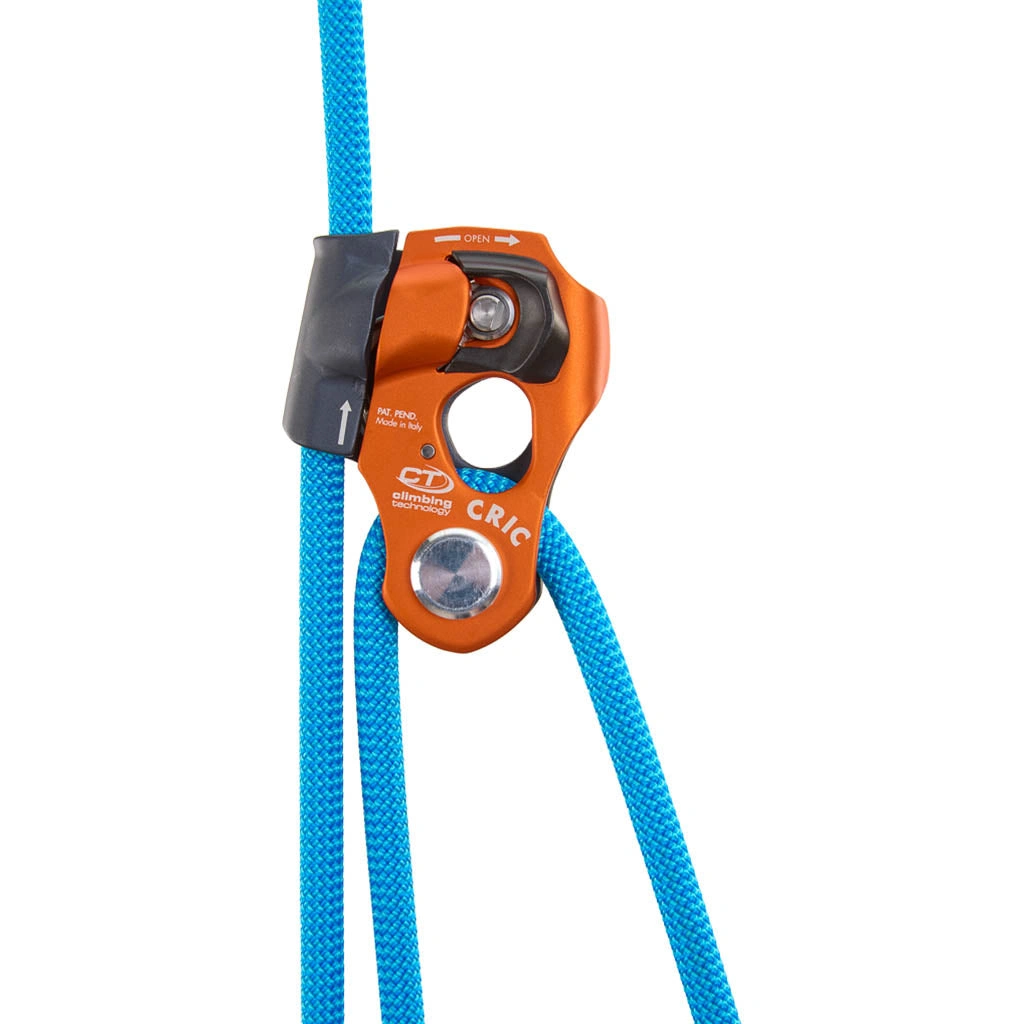

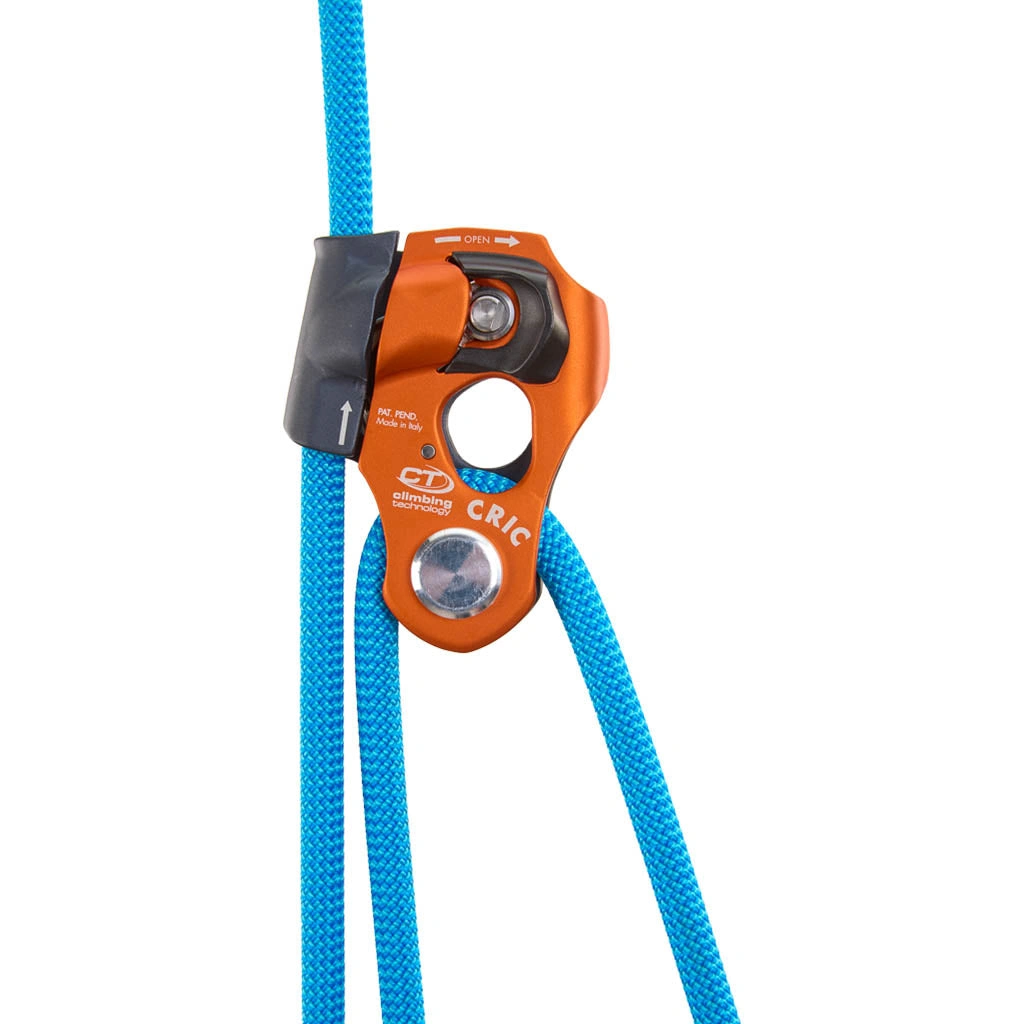

• It allows the direct lifting of a load, the creation of hauling systems and the rescue or self-rescue of a person, as in the case of a victim fallen into a crevasse (progress-capture hauling pulley mode);

• When used in pulley mode, the rope is free to run in both directions; instead, when the hauling-pulley mode is used, the rope can only run in one direction and it is locked in the opposite one;

• When used in progress-capture hauling pulley mode, it is possible to lower the lifted load by acting on the dedicated cord connected to the cam within the device;

• The easy opening, via an intuitive release button, makes the installation of the device on the rope swift – no matter the mode that is going to be used in – even with gloves on or while operating in difficult conditions;

• Equipped with a steel cam featuring teeth that minimize rope wear but are effective in blocking the rope. In addition, the cam is designed with two slots to reduce the build-up of dirt, so maintaining the lock on the rope very efficient in any condition (muddy, frozen rope, etc.).

Technical Specifications

• Rope Compatibility: 8 – 12 mm

• Working Load Limit: 100 kg

• Weight: 140 g

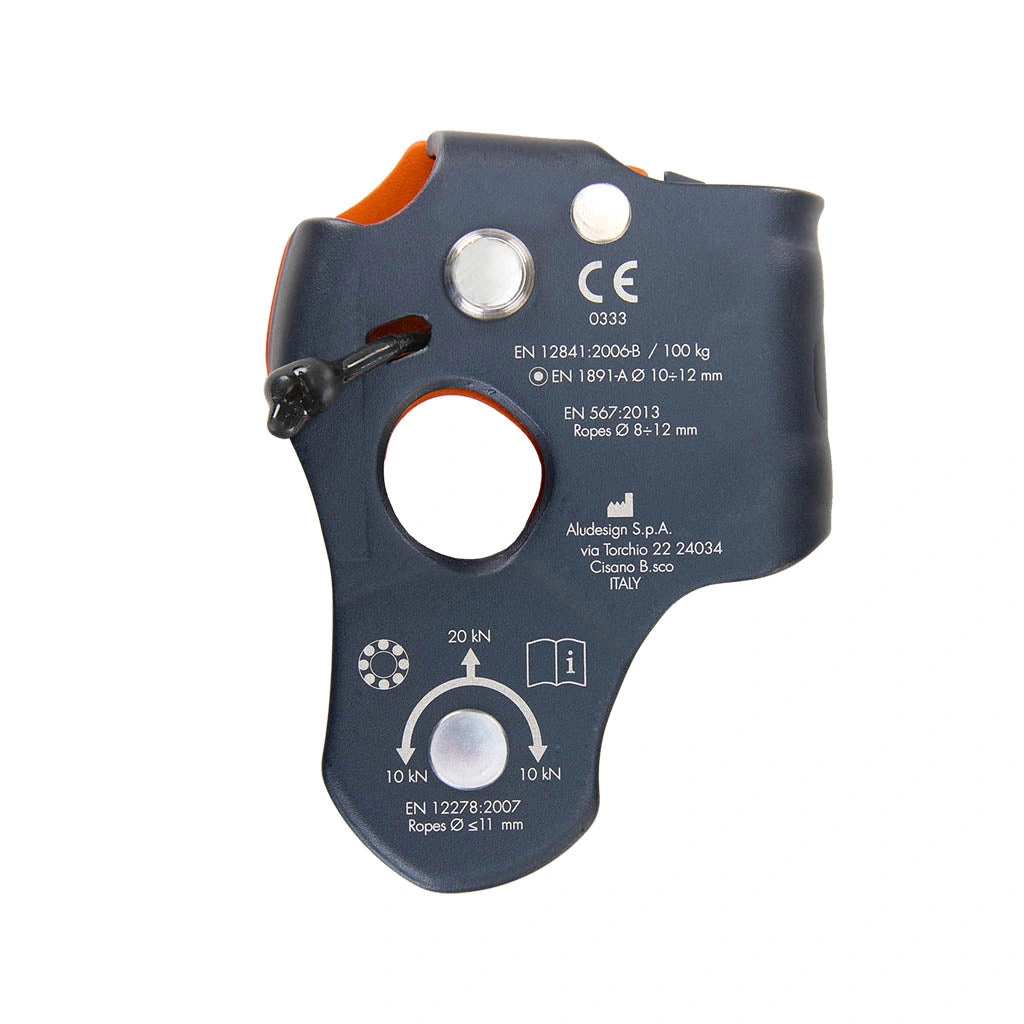

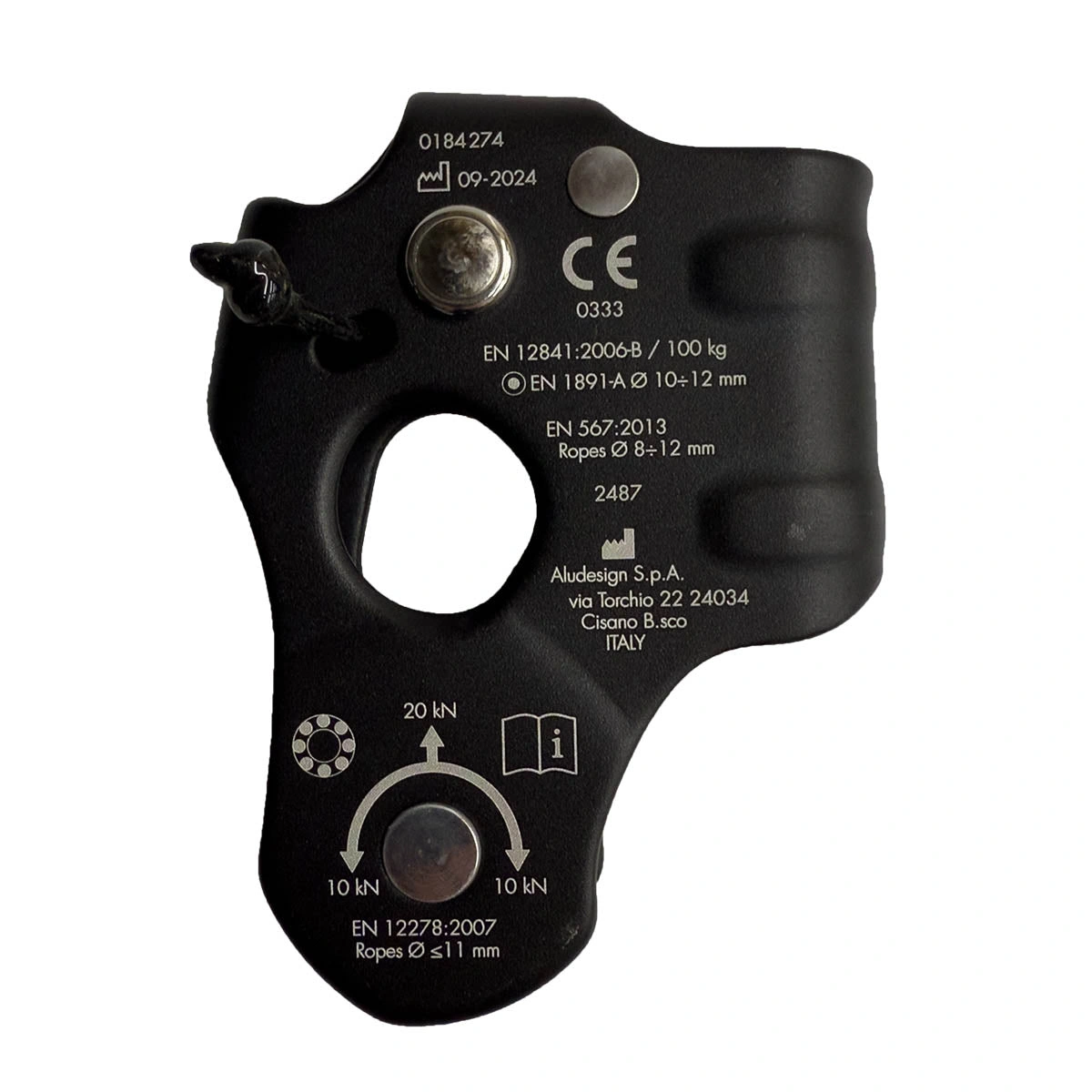

• EN 567:2013 EN 1891 – EN 564 – EN 892 -Ø 8 ÷ 12 mm

• EN 12841:2006-B EN 1891-A – Ø 10 ÷ 12 mm

• EN 12278:2007 EN 1891 – EN 564 – EN 892 – Ø ≤ 11 mm
